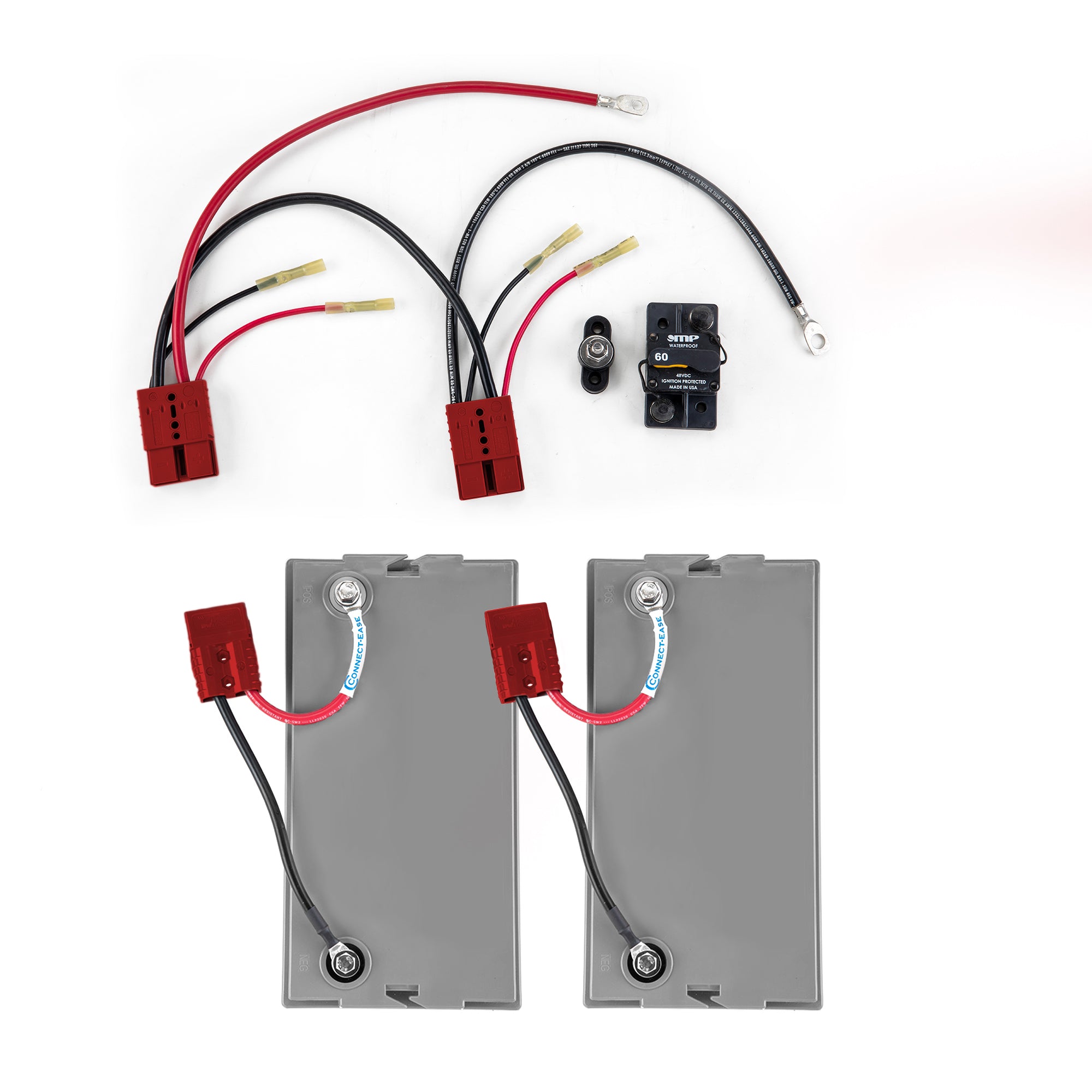

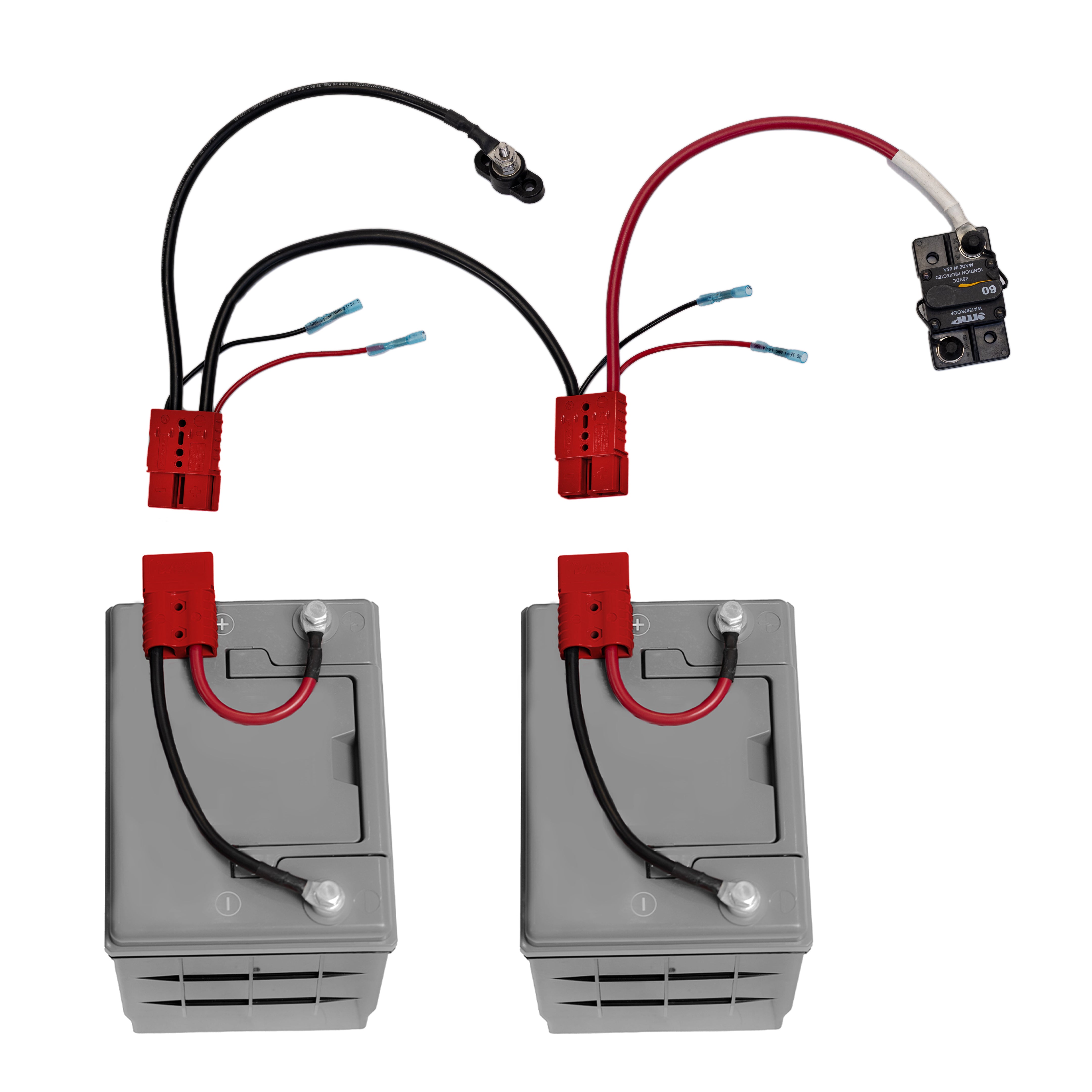

24V Pro Series Trolling Motor Connection Kit — 6-Gauge with On-Board Charging & 60A Circuit Breaker

Built for today's high-output brushless motors, the 24V Pro delivers a complete, pre-configured power system: 6-gauge UL1426 tinned wire, a 60-amp resettable breaker, negative ground block and on-board charging leads — rated up to 150 amps. It's the clean, low-resistance install serious anglers want behind a Garmin Force, Minn Kota Quest, Lowrance Ghost, MotorGuide or Rhodan.

Connect-Ease's patented, self-cleaning, positive-lock connectors replace wing nuts and stacked ring terminals at the battery. Install once and every connection after that is plug-and-play — the system wires your batteries correctly every time, and integrated charging leads keep your on-board charger connected while you fish, trailer or store the boat.

Compatible trolling motors and vehicles: Garmin Force and Force Kraken (24V), Minn Kota Ultrex QUEST, Ulterra QUEST, Terrova QUEST and Riptide (24V), Lowrance Ghost (24V), MotorGuide Tour and Xi5 (24V), Rhodan 24V.

System voltage: 24V (two 12V in series or one 24V lithium). Recommended batteries: Two 12V AGM/flooded/LiFePO4 batteries in series, or one 24V single-case lithium (60–120Ah). Amperage and protection: Rated to 150A; 60A breaker included — matches Minn Kota, Garmin and Lowrance recommendations for 24V motors.

A heavy-duty, plug-and-play 24V trolling motor wiring system built for high-output motors, including Garmin Force Kraken, Minn Kota Quest, Lowrance Ghost, MotorGuide, and Rhodan. Features 6-gauge wire, a 60-amp resettable circuit breaker, and a negative ground block — everything pre-configured for clean, reliable power up to 150 amps.

• 6-gauge UL1426 tinned marine-grade wire — lower voltage drop
• 60A resettable circuit breaker included
• Negative ground block included
• Integrated charging leads for Minn Kota, NOCO, Battery Tender, Dakota Lithium chargers
• Capacity up to 150A; self-cleaning, positive-lock connectors
• No cutting, splicing or soldering — AGM and lithium compatible

• Wire: 6-gauge UL1426 tinned marine-grade wire
• Protection: 60-amp resettable circuit breaker
• Ground: Negative connection block included
• Charging: Integrated on-board charging leads with heat-shrink butt splices — compatible with Minn Kota, NoCo, Battery Tender, Dakota Lithium chargers
• Connectors: Self-cleaning, positive-lock plug-and-play connections
• Capacity: Up to 150 amps
• Compatibility: All 24V trolling motors; AGM and lithium battery compatible
• Installation: No cutting, splicing, or soldering required

Compatible Trolling Motors:

• Garmin Force
• Force Kraken (24V)
• Minn Kota Ultrex QUEST
• Ulterra QUEST
• Terrova QUEST
• Riptide (24V)
• Lowrance Ghost (24V)
• MotorGuide Tour and Xi5 (24V)
• Rhodan 24V

Recommended Voltage/ Amperage/ Fuse/ Breaker:

24V (two 12V in series or one 24V lithium), Rated to 150A; 60A breaker included — matches Minn Kota, Garmin and Lowrance recommendations for 24V motors

Battery Types:

Two 12V AGM/flooded/LiFePO4 batteries in series, or one 24V single-case lithium (60–120Ah)

FAQ: Why upgrade to 6-gauge?

A: 6-gauge cuts voltage drop on longer bow runs and high-draw brushless motors, so you keep full thrust and battery life.

FAQ: Is the circuit breaker included?

A: Yes. A 60A resettable breaker and negative ground block come in the box.
