From the get-go, GRAPH POWER was designed to solve the connections and power issues associated with rigging and running the sophisticated fishing electronics
common on today’s fishing boats, providing clear, clean power and direct connections.
GRAPH POWER is designed to work with all manufacturers of fresh- and saltwater marine
electronics, including Humminbird, Garmin, Lowrance, etc. GRAPH POWER features marine-grade sheathed wire with multiple fused connections for your console
and bow electronics. CONNECT-EASE uses the best marine-grade connections and heat-shrinkable crimped connections that are waterproof, reject RF interference, and stay
connected on big water and waves. There is a 30 amp fuse at the battery and your choice of 3 or 5 amp fuses to use at the graph connections.

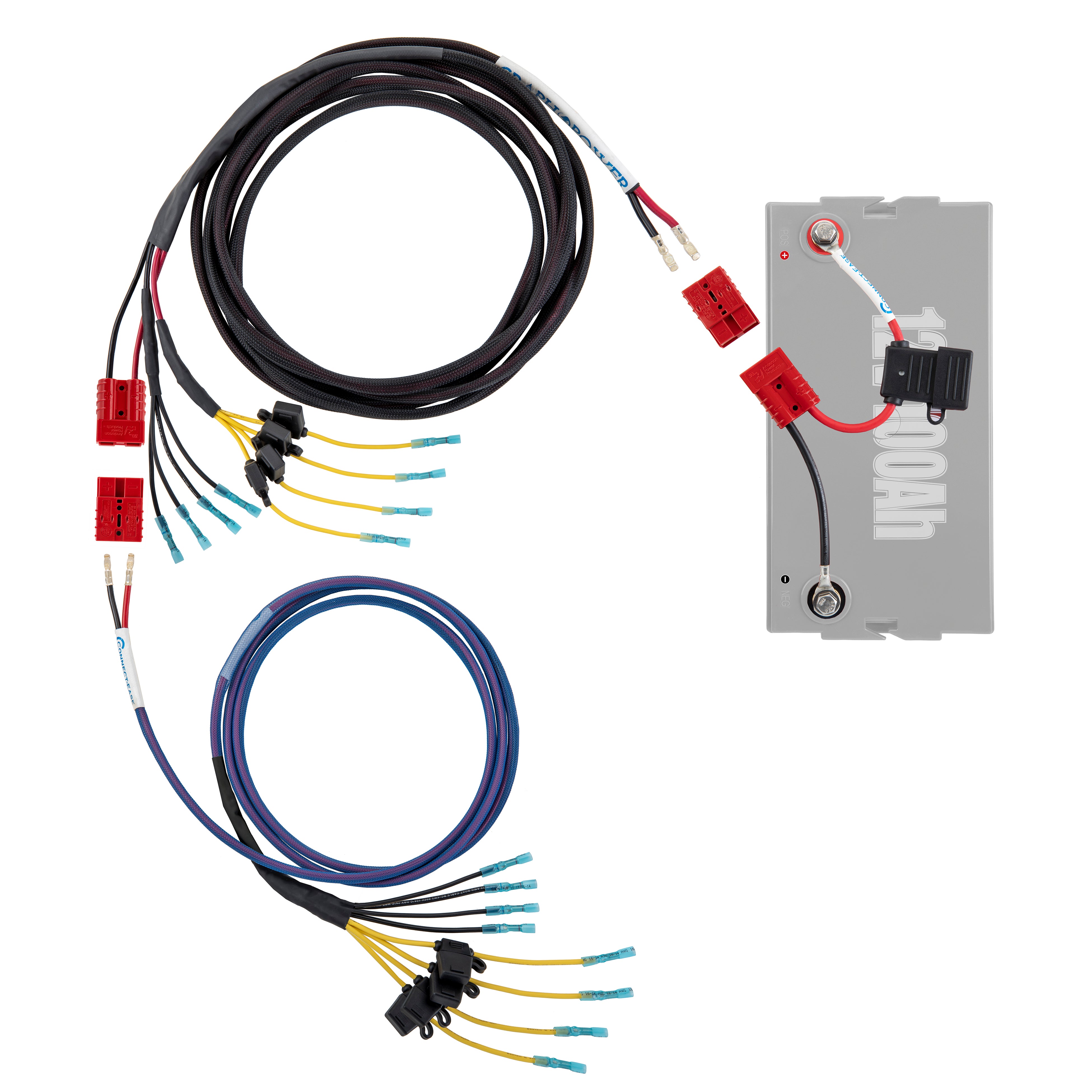

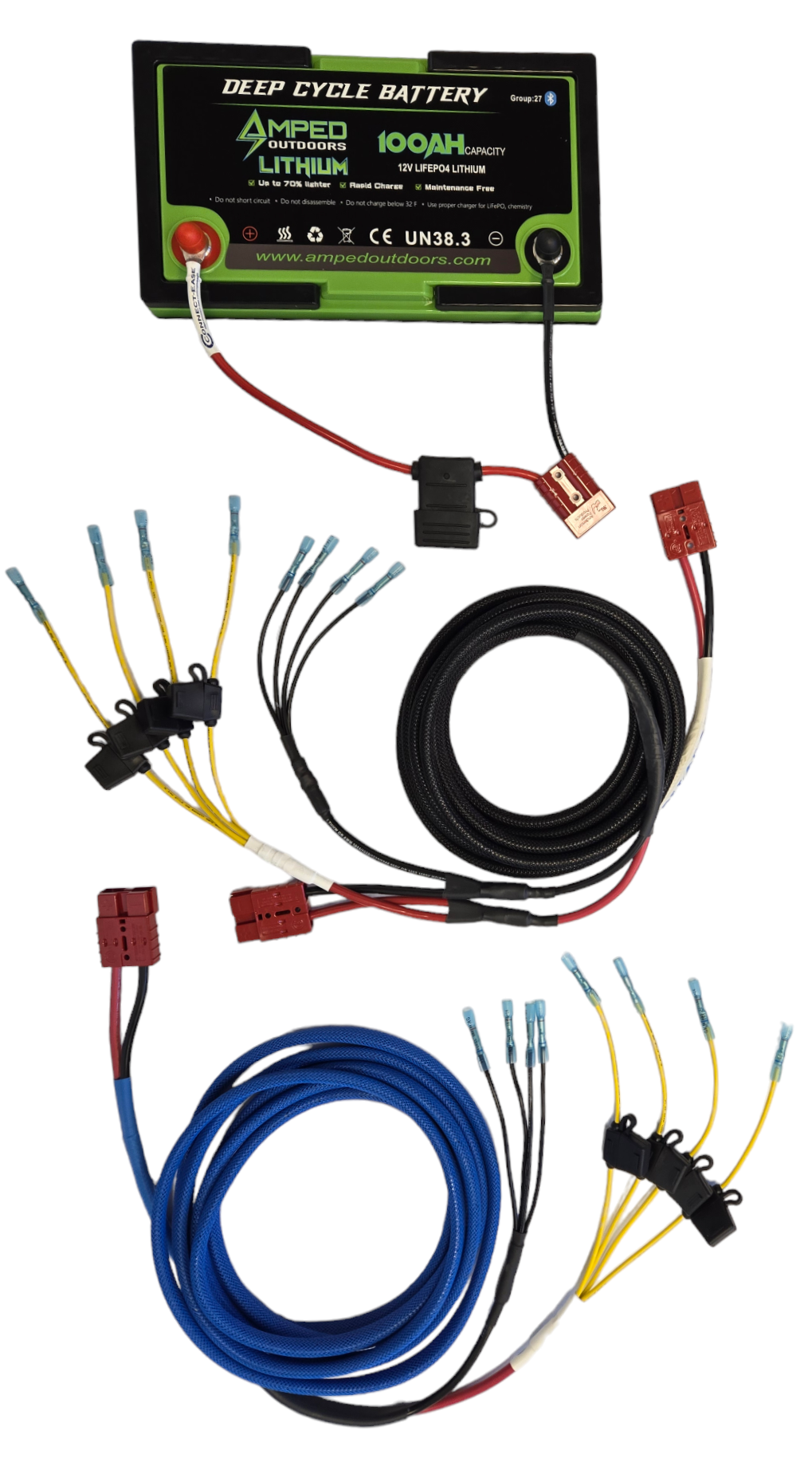

GRAPH POWER FEATURES
(19’-22’ CONSOLE BOAT KIT)
• HOUSE CONNECTION: 30 Amp fused quick-snap connection at the battery—no switch needed
• EASY FEED DESIGN: Bullet connections and sheathed housing for hassle-free installation and snaking through tight spaces
• PRO CONSOLE BACKBONE: 16 feet of 8 gauge sheathed marine-grade wire
• PRO BOW BACKBONE: 13 feet of 8 gauge sheathed marine-grade wire
• DEVICE PROTECTION: Your choice of 3 or 5 Amp at the fused connections to meet manufacturer recommendations
• HEAT SHRINKABLE BUTT SPLICES: Weatherproof, vibration-, and corrosion-free for a lifetime of on-the-water use
Lithium Compatible
