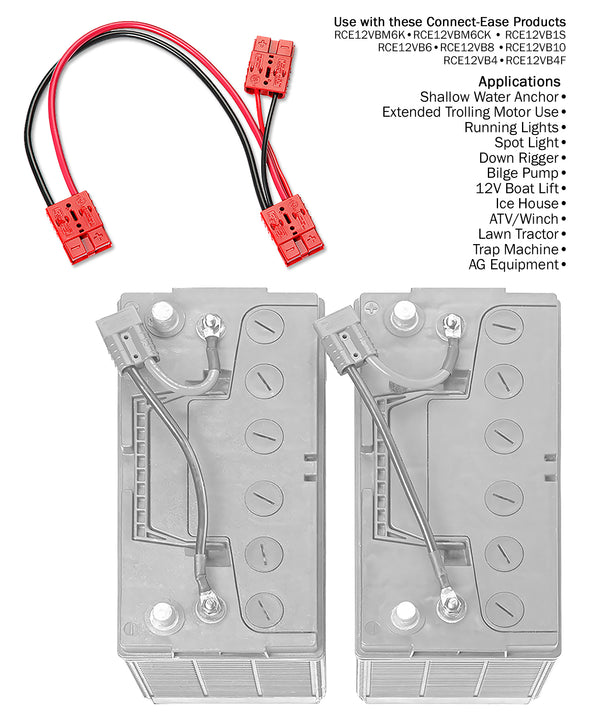

Already running a Connect-Ease system? The RCE12VBP adds a second 12V battery in parallel with 8-gauge marine wire and plug-and-play connectors. It's the quick upgrade for more trolling motor run time or a bigger house bank — no rewiring your existing setup.
Connect-Ease's patented, self-cleaning, positive-lock connectors replace wing nuts and stacked ring terminals at the battery. Install once and every connection after that is plug-and-play — no tools, no crossed wires, no corroded posts, and batteries come out in seconds for charging or winter storage.
Compatible trolling motors and vehicles: Minn Kota Endura, Traxxis, PowerDrive, Terrova and Riptide (12V models); MotorGuide X3, R3 and Xi3 (12V); Newport Vessels and Watersnake 12V motors. Compatible electronics and accessories: Also feeds 12V house loads: Fish finders, GPS, VHF radios, bilge pumps, livewell pumps, LED lighting, USB chargers and shallow-water anchors.
System voltage: 12V. Recommended batteries: Matched 12V batteries — 12V deep-cycle AGM, flooded lead-acid or 12.8V LiFePO4 lithium (Group 24/27/31, 50–120Ah). Amperage and protection: Plan for up to 120A continuous draw on 12V motors (30–55 lb thrust). Protect with a 50A breaker per motor maker.
A compact, plug-and-play 8-gauge parallel battery connection system for combining two 12V batteries to extend runtime for trolling motors, winches, lights, and agricultural equipment. Built to UL1977 standards for reliable performance in marine and outdoor environments.

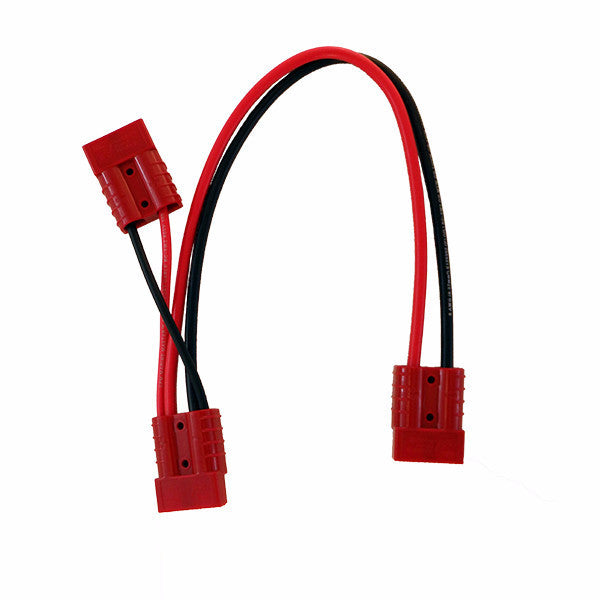

- 8-gauge marine-grade parallel connector
- Adds a second 12V battery to an existing Connect-Ease system
- Keeps 12V output, increases amp hours
- Plug-and-play, self-cleaning connectors
- Lithium and AGM compatible
- Wire: 8-gauge marine-grade parallel connection system
- Connectors: Plug-and-play, self-cleaning positive-lock connections
- Applications: Small trolling motors, winches, halogen lights, ag equipment, ice houses
- Compatibility: AGM and lithium battery compatible
- Rating: UL1977 rated — 120-amp capacity; -40°F to 221°F temperature range
- Installation: No cutting, splicing, or soldering required
- Patent No.: 9,559,473
Compatible Trolling Motors:
- Minn Kota Endura
- Traxxis
- PowerDrive
- Terrova
- Riptide (12V models)
- MotorGuide X3, R3 and Xi3 (12V)
- Newport Vessels and Watersnake 12V motors
Recommended Voltage/ Amperage/ Fuse/ Breaker:
12V Plan for up to 120A continuous draw on 12V motors (30–55 lb thrust). Protect with a 50A breaker per motor maker.
Battery Types:
Matched 12V batteries — 12V deep-cycle AGM, flooded lead-acid or 12.8V LiFePO4 lithium (Group 24/27/31, 50–120Ah).
FAQ: What's the difference between RCE12VBP and RCE12VBPK?
A: RCE12VBP is the add-on connector for an existing Connect-Ease setup. RCE12VBPK is the complete two-battery parallel kit.
FAQ: Is 8-gauge enough for my trolling motor?
A: 8-gauge suits most 12V trolling motors on typical runs. For long runs or high-thrust motors, step up to 6-gauge.
12V parallel battery connector, 8-gauge battery jumper, add second battery, parallel battery cable.
