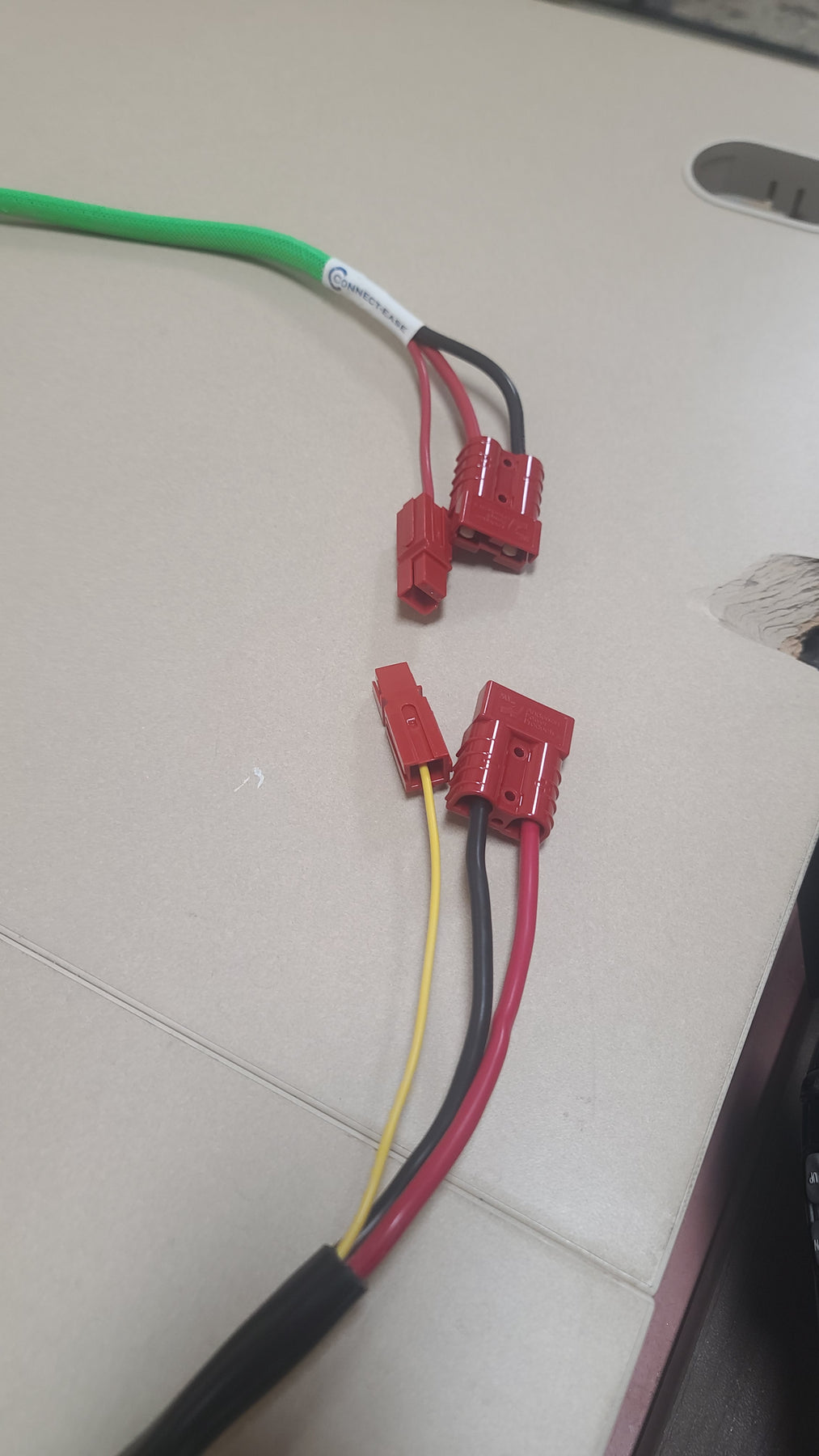

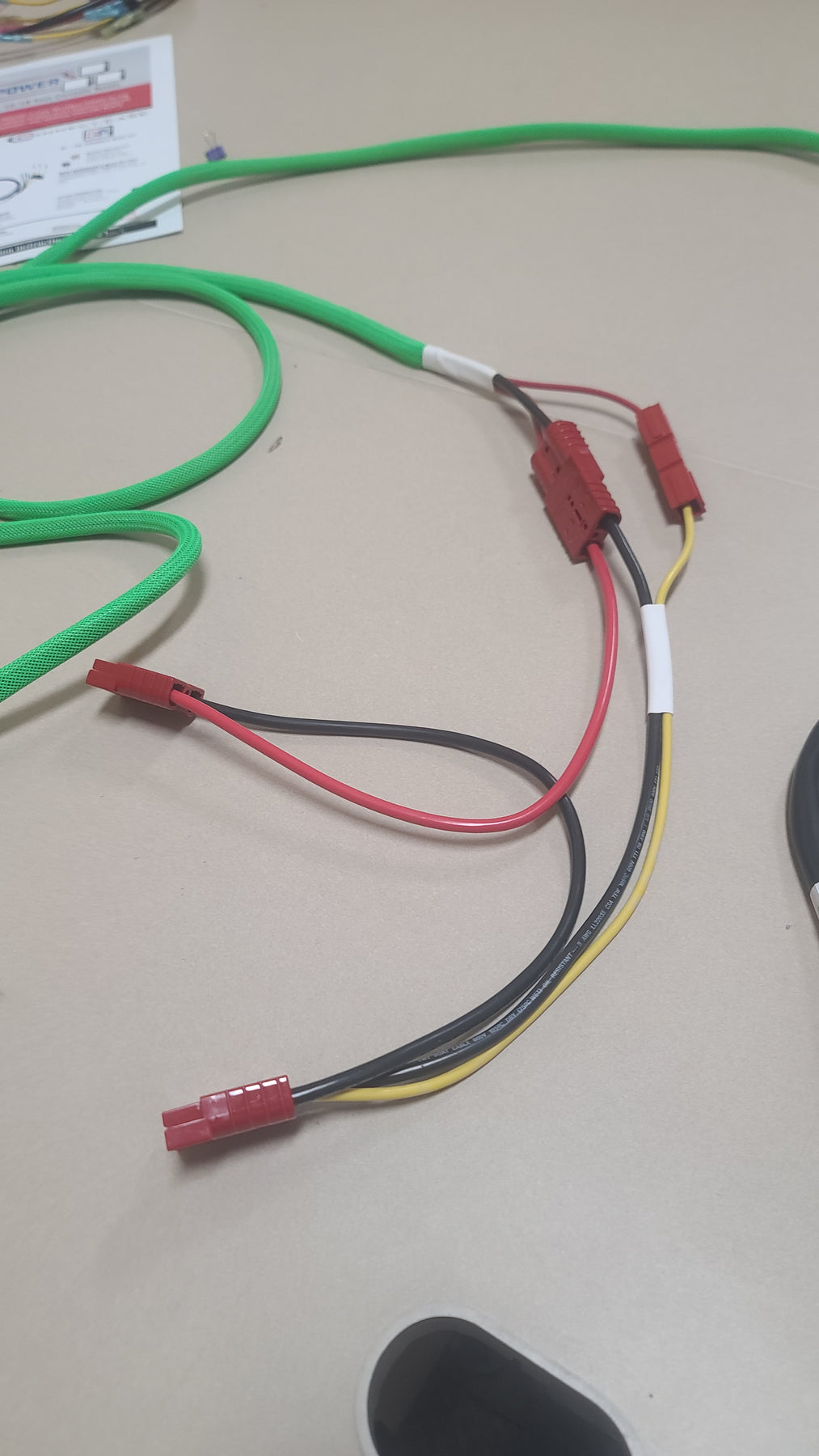

Boundary Waters 14 ft Trolling Motor Extension — 8 Gauge Plug & Play

Put your batteries where they belong. The Boundary Waters extension is a 14-foot, 8-gauge cable with Connect-Ease connectors on both ends, built for the 24V Vantage-style system. Relocate batteries for ideal weight distribution and boat control without splicing your motor leads. Let us know if you run a 24V single-case battery or two 12V batteries when you order.

Connect-Ease's patented, self-cleaning, positive-lock connectors replace wing nuts and stacked ring terminals at the battery. Install once and every connection after that is plug-and-play — no tools, no crossed wires, no corroded posts, and batteries come out in seconds for charging or winter storage.

Compatible trolling motors and vehicles: Minn Kota Ultrex, Ulterra, Terrova and Riptide (24V / 70–80 lb); Garmin Force (24V); Lowrance Ghost (24V); MotorGuide Tour, X5 and Xi5 (24V); Rhodan 24V.

System voltage: 24V. Recommended batteries: Two 12V AGM/flooded/LiFePO4 batteries in series, or one 24V single-case lithium (60–120Ah). Amperage and protection: 24V motors (70–80 lb) draw up to ~56A at full throttle. Protect with a 60A resettable breaker. For runs over ~15 ft at full draw, consider 6-gauge to limit voltage drop.

A 14-foot, 8-gauge Connect-Ease extension cable with plug-and-play connectors — designed for the 24V Vantage trolling motor system. Place batteries in the ideal position for weight distribution and boat control without compromising your connection. Please advise if you are using a 24v single case battery or 2 -12volt batteries.

• 14 ft length for battery relocation
• 8-gauge wire with Connect-Ease connectors on both ends
• Designed for 24V trolling motor systems
• Improves weight distribution and boat control
• Lithium compatible

• Length: 14 ft
• Wire: 8-gauge with Connect-Ease connectors on both ends
• Compatibility: Works with 24V trolling motor systems
• Use: Optimal battery placement for weight distribution and boat control
• Lithium Compatible

Compatible Trolling Motors:

• Minn Kota Ultrex
• Ulterra
• Terrova
• Riptide (24V / 70–80 lb)
• Garmin Force (24V)
• Lowrance Ghost (24V)
• MotorGuide Tour, X5 and Xi5 (24V)
• Rhodan 24V

Recommended Voltage/ Amperage/ Fuse/ Breaker:

24V, 24V motors (70–80 lb) draw up to ~56A at full throttle. Protect with a 60A resettable breaker. For runs over ~15 ft at full draw, consider 6-gauge to limit voltage drop

Battery Types:

Two 12V AGM/flooded/LiFePO4 batteries in series, or one 24V single-case lithium (60–120Ah)

FAQ: Will 14 feet of 8-gauge cause voltage drop?

A: At 24V the drop stays modest for most motors. For maximum-draw motors on very long runs, 6-gauge is the safer choice.

FAQ: Does it work with a single 24V lithium?

A: Yes — tell us whether you use a 24V single-case battery or two 12V batteries when ordering.
