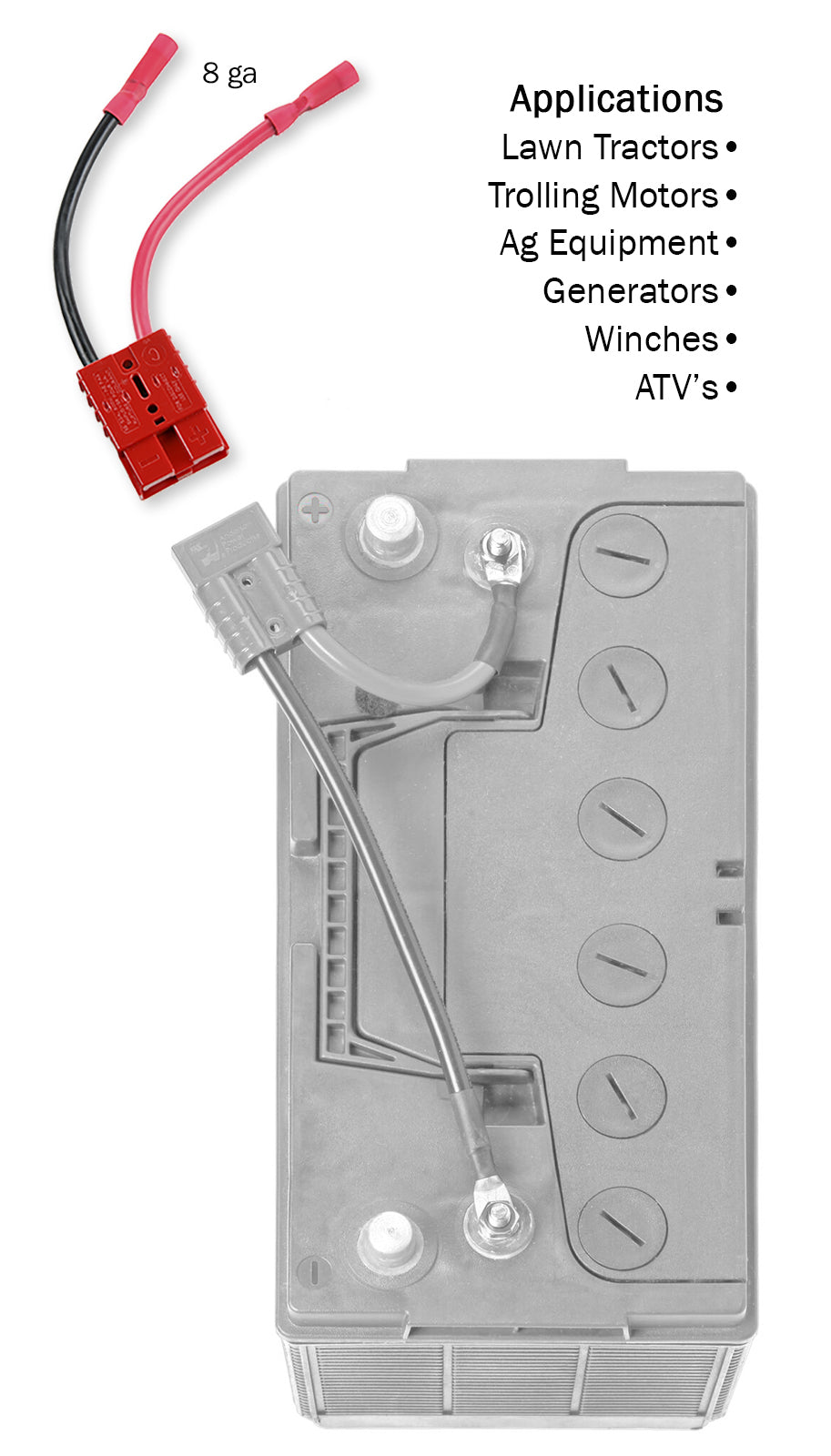

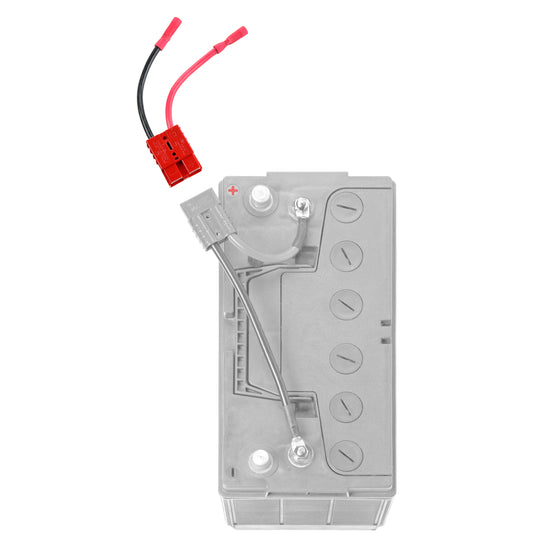

Matched to the 8-gauge leads used on most 12V trolling motors, the RCE12VB8 gives you a clean, positive-lock connection at the battery. Splice it onto your motor leads once and you'll never fight a wing nut again.
Connect-Ease's patented, self-cleaning, positive-lock connectors replace wing nuts and stacked ring terminals at the battery. Install once and every connection after that is plug-and-play — no tools, no crossed wires, no corroded posts, and batteries come out in seconds for charging or winter storage.
Compatible trolling motors and vehicles: Minn Kota Endura, Traxxis, PowerDrive, Terrova and Riptide (12V models); MotorGuide X3, R3 and Xi3 (12V); Newport Vessels and Watersnake 12V motors.
System voltage: 12V. Recommended batteries: 12V deep-cycle AGM, flooded lead-acid or 12.8V LiFePO4 lithium (Group 24/27/31, 50–120Ah). Amperage and protection: Plan for up to 120A continuous draw on 12V motors (30–55 lb thrust). Protect with a 50A breaker per motor maker.
A straightforward, plug-and-play 8-gauge marine-grade connector for 12V trolling motor connections. Built to UL1977 standards for reliable performance in fresh and saltwater environments.
• 8-gauge leads match most 12V trolling motor wiring
• Self-cleaning, positive-lock connector
• Heat-shrink butt splices for a waterproof joint
• Mates with all red Connect-Ease systems
• Lithium and AGM compatible
-
Wire: 8-gauge marine-grade equipment connection
-
Connectors: Plug-and-play, self-cleaning positive-lock connections
-
Compatibility: AGM and lithium battery compatible
-
Rating: UL1977 rated — 120-amp capacity; -40°F to 221°F temperature range
-
Installation: No cutting, splicing, or soldering required
Compatible Trolling Motors:
- Minn Kota Endura
- Traxxis
- PowerDrive
- Terrova
- Riptide (12V models)
- MotorGuide X3, R3 and Xi3 (12V)
-
Newport Vessels and Watersnake 12V motors
Recommended Voltage/ Amperage/ Fuse/ Breaker:
12V Plan for up to 120A continuous draw on 12V motors (30–55 lb thrust). Protect with a 50A breaker per motor maker.
Battery Types:
12V deep-cycle AGM, flooded lead-acid or 12.8V LiFePO4 lithium (Group 24/27/31, 50–120Ah)
FAQ: Will this fit my motor's wire?
A: Yes, if your motor leads are 8-gauge, which is standard on most 12V trolling motors.
FAQ: Do I still need a circuit breaker?
A: Yes. Install a 50A breaker (or what your motor maker specifies) on the positive lead.
