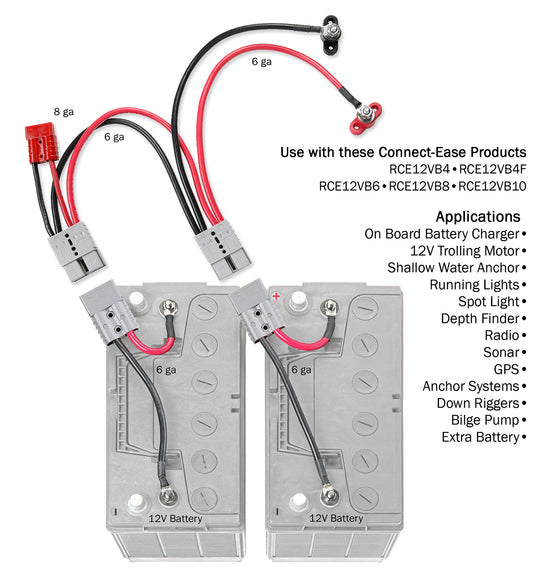

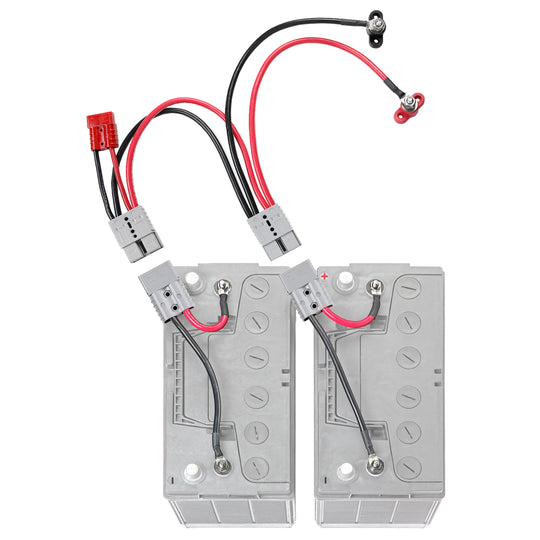

Double your 12V capacity for starting and accessories. The RCE12VBM6PK parallels two batteries with heavy 6 AWG wire and plug-and-play connections — ideal for outboard boats running big electronics, campers and motorsports rigs.
Your starting battery is the one you can't afford to lose. Connect-Ease outboard and starting kits use heavy-gauge marine wire and patented plug-and-play connectors so the engine circuit stays secure, accessories stay organized, and the battery comes out in seconds for charging or winterizing.
Compatible electronics and accessories: Fish finders, GPS, VHF radios, bilge pumps, livewell pumps, LED lighting, USB chargers and shallow-water anchors.
System voltage: 12V (two batteries in parallel). Recommended batteries: Two matched 12V batteries of the same chemistry and age. Amperage and protection: 6 AWG; fuse each circuit per device maker.
Add a second battery to your outboard setup for extended runtime and more power for electronics, livewells, bilge pumps, and power poles — without draining your starting battery. Both batteries draw and charge together, giving you more capacity for longer days on the water.
-
Wire: 6 AWG leads on both ends; 8 AWG battery-side accessory connector
-
Configuration: Dual parallel battery connection — both batteries draw and charge simultaneously
-
Accessory Port: Add RCE12VB4 for graphs, live imaging, forward-facing sonar, and more
-
Rating: 60–240A DC / UL1977
-
Compatibility: AGM and lithium battery compatible
-
Patent No.: 9,559,473 / 9,866,047
• Parallels two 12V batteries
• 6 AWG heavy-duty wire
• Plug-and-play, self-cleaning connectors
• For boats, campers and motorsports
• Lithium compatible (matched batteries)
Compatible Fish Finder:
- Fish finders
- GPS
- VHF radios
- bilge pumps
- livewell pumps
- LED lighting
- USB chargers
- shallow-water anchors
Recommended Voltage/ Amperage/ Fuse/ Breaker:
12V (two batteries in parallel), 6 AWG; fuse each circuit per device maker
Battery Types:
Two matched 12V batteries of the same chemistry and age
FAQ: Parallel or ACR — which do I need?
A: Parallel doubles capacity on one bank. Choose the ACR kit (RCE12VBM6IK) to keep a protected starting battery.
FAQ: Do the batteries need to match?
A: Yes — same chemistry, capacity and age.
dual battery parallel kit 6 AWG, outboard dual battery wiring; boat battery bank kit; parallel starting batteries
