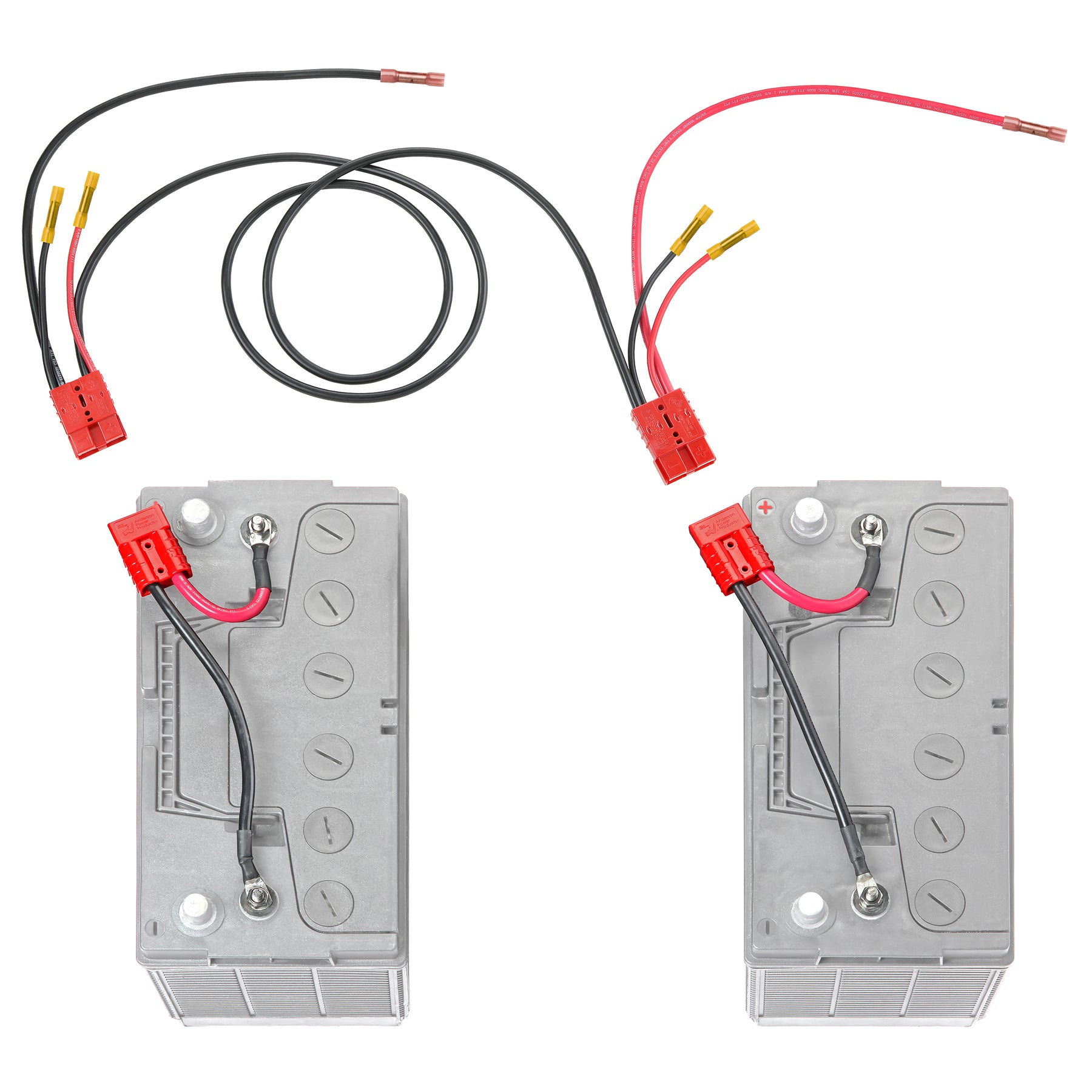

Many bass and multi-species boats split batteries between compartments for weight balance. The RCE24VB5CHK adds a 5-foot series extension so your two 12V batteries can live apart while still connecting correctly — with integrated on-board charging leads to keep your charger plugged in.
Connect-Ease's patented, self-cleaning, positive-lock connectors replace wing nuts and stacked ring terminals at the battery. Install once and every connection after that is plug-and-play — the system wires your batteries correctly every time, and integrated charging leads keep your on-board charger connected while you fish, trailer or store the boat.
Compatible trolling motors and vehicles: Minn Kota Ultrex, Ulterra, Terrova and Riptide (24V / 70–80 lb); Garmin Force (24V); Lowrance Ghost (24V); MotorGuide Tour, X5 and Xi5 (24V); Rhodan 24V.
System voltage: 24V (two 12V in series). Recommended batteries: Two 12V AGM/flooded/LiFePO4 batteries in series, or one 24V single-case lithium (60–120Ah). Amperage and protection: 24V motors (70–80 lb) draw up to ~56A at full throttle. Protect with a 60A resettable breaker.
A plug-and-play 24V series connection kit with a 60-inch extension designed for boats with separated battery compartments — including Lund, Crestliner, Pro Craft, bass boats, and center console layouts. Correctly connects batteries in series every time with integrated on-board charging leads.
• 5 ft series extension for batteries in separate compartments
• Integrated on-board charging leads
• Plug-and-play, self-cleaning connectors
• Marine-grade wire with heat-shrink terminations
• AGM and lithium compatible
-
Wire: 8-gauge marine-grade wire with 60-inch separated battery extension
-
Charging: Integrated on-board charging leads — pre-wired for multi-bank charger connection
-
Connectors: Self-cleaning, positive-lock plug-and-play connections — no tools required after installation
-
Compatibility: All 24V trolling motor brands and models; AGM and lithium battery compatible
-
Rating: UL1426 tinned marine-grade wire; saltwater approved; 1-year warranty; Made in the USA
-
Patent No.: 9,559,473 / 9,866,047
Compatible Trolling Motors:
- Minn Kota Ultrex
- Ulterra
- Terrova
- Riptide (24V / 70–80 lb)
- Garmin Force (24V)
- Lowrance Ghost (24V)
- MotorGuide Tour X5 and Xi5 (24V)
- Rhodan 24V
Recommended Voltage/ Amperage/ Fuse/ Breaker:
24V (two 12V in series), 24V motors (70–80 lb) draw up to ~56A at full throttle. Protect with a 60A resettable breaker
Battery Types:
Two 12V AGM/ flooded/ LiFePO4 batteries in series, or one 24V single-case lithium (60–120Ah)
AQ: Why would I need the 5 ft extension?
A: When your two 12V batteries sit in different compartments and a standard jumper won't reach.
FAQ: Is it 8- or 6-gauge?
A: This is the standard kit. For a 6-gauge separated-battery system, see the 24V Pro RCE24V5PRO.
