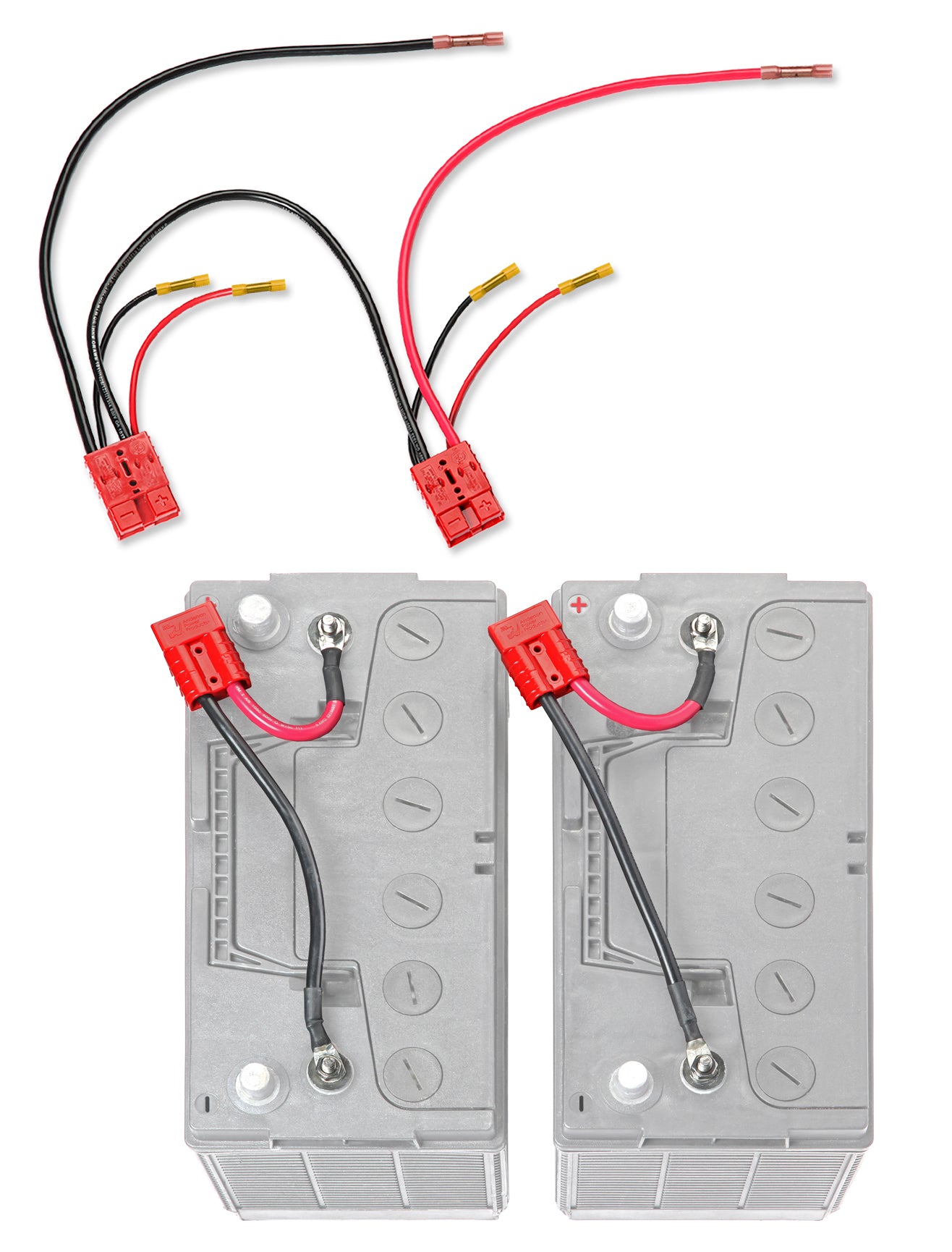

The Game Changer 24V kit connects two 12V batteries in series correctly every time — and keeps your multi-bank on-board charger connected to each battery. Swap or remove batteries in seconds without tools, even in tight compartments, with patented Connect-Ease plug-and-play connectors and 8-gauge UL1426 tinned marine wire.
Connect-Ease's patented, self-cleaning, positive-lock connectors replace wing nuts and stacked ring terminals at the battery. Install once and every connection after that is plug-and-play — the system wires your batteries correctly every time, and integrated charging leads keep your on-board charger connected while you fish, trailer or store the boat.
Compatible trolling motors and vehicles: Minn Kota Ultrex, Ulterra, Terrova and Riptide (24V / 70–80 lb); Garmin Force (24V); Lowrance Ghost (24V); MotorGuide Tour, X5 and Xi5 (24V); Rhodan 24V.
System voltage: 24V (two 12V in series). Recommended batteries: Two 12V AGM/flooded/LiFePO4 batteries in series, or one 24V single-case lithium (60–120Ah). Amperage and protection: 24V motors (70–80 lb) draw up to ~56A at full throttle. Protect with a 60A resettable breaker.
Power: Two 12V AGM, flooded or LiFePO4 in series (60–120Ah) · Charging leads pre-wired for Multi Bank Minn Kota, NOCO, Battery Tender and Lithium chargers
• Series-wires two 12V batteries for 24V — no crossed jumpers
• Pre-wired multi-bank charging leads for Minn Kota, NOCO, Battery Tender, Dakota Lithium chargers
• 8-gauge UL1426 tinned marine-grade wire
• Self-cleaning, positive-lock connectors — no tools after install
• Saltwater approved; Made in USA; 1-year warranty
• Patents 9,559,473 / 9,866,047; AGM and lithium (60–120Ah) compatible
-
Wire: 8-gauge UL1426 tinned marine-grade wire
-
Charging: Integrated multi-bank on-board charging leads — pre-wired for MinnKota, NoCo, Battery Tender, Dakota Lithium, and other chargers
-
Connectors: Self-cleaning, positive-lock plug-and-play connections — no tools required after installation
-
Compatibility: All 24V trolling motor brands and models; AGM and lithium battery compatible (60–120Ah)
-
Rating: Saltwater approved; 1-year warranty; Made in the USA
-
Patent No.: 9,559,473 / 9,866,047
Compatible Trolling Motors:
- Minn Kota Ultrex
- Ulterra
- Terrova
- Riptide (24V/ 70-80 lb)
- Garmin Force (24V)
- Lowrance Ghost (24V)
- MotorGuide Tour, X5, and Xi5 (24V)
-
Rhodan 24V
Recommended Voltage/ Amperage/ Fuse/ Breaker:
24V (two 12V in series), 24V motors (70–80 lb) draw up to ~56A at full throttle. Protect with a 60A resettable breaker
Battery Types:
Two 12V AGM/flooded/LiFePO4 batteries in series, or one 24V single-case lithium (60–120Ah)
FAQ: Does this work with a single 24V lithium battery?
A: This kit is for two 12V batteries in series. For a single-case 24V lithium, choose the Ignite 24V (RCE24VSCK).
FAQ: Can I still use my 2-bank on-board charger?
A: Yes. The integrated charging leads connect each battery to its own charger bank.
24V trolling motor wiring kit, 24 volt series battery connection; 24V trolling motor plug; on-board charger 24V; Minn Kota 24V wiring
