24V Pro 6 gauge trolling motor wiring kit separated battery wiring Lithium ready (RCE24V5PRO)
RCE24V5PROCHK

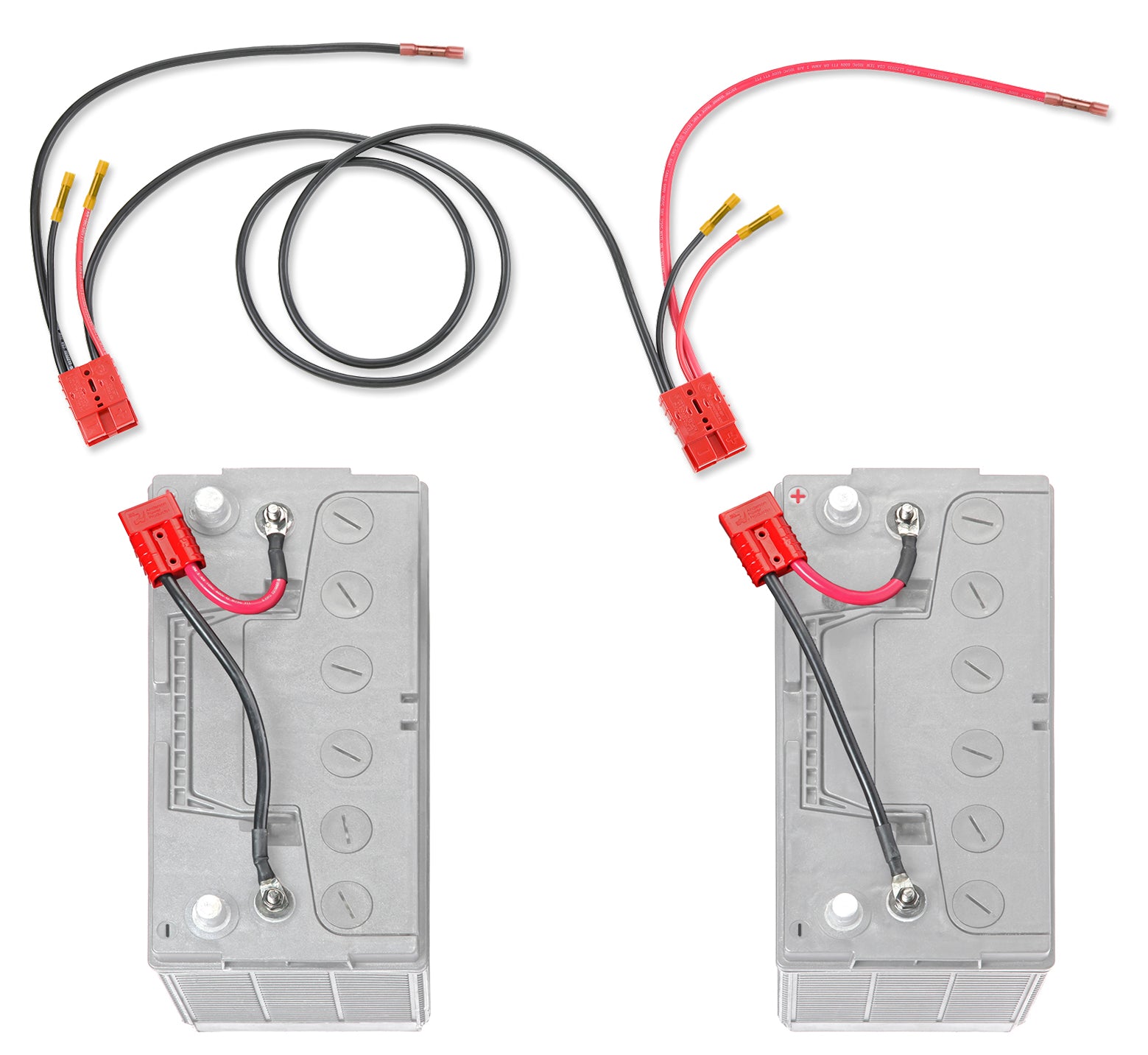

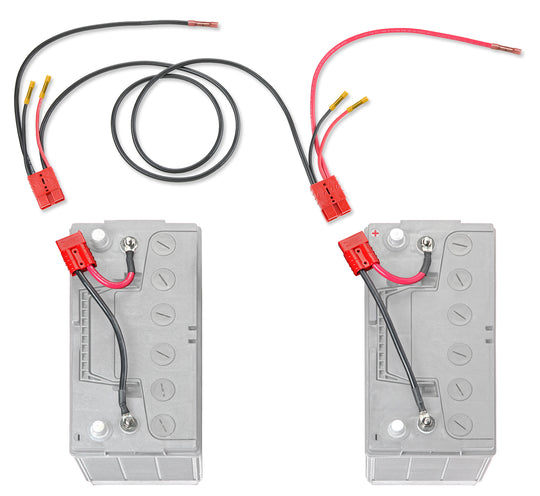

The RCE24V5PRO brings 6-gauge Pro Series performance to boats with batteries in different compartments. An extended 6-gauge series connection lets you place batteries for ideal weight distribution while keeping resistance low and the connection foolproof.
Connect-Ease's patented, self-cleaning, positive-lock connectors replace wing nuts and stacked ring terminals at the battery. Install once and every connection after that is plug-and-play — no tools, no crossed wires, no corroded posts, and batteries come out in seconds for charging or winter storage.
Compatible trolling motors and vehicles: Minn Kota Ultrex, Ulterra, Terrova and Riptide (24V / 70–80 lb); Garmin Force (24V); Lowrance Ghost (24V); MotorGuide Tour, X5 and Xi5 (24V); Rhodan 24V.
System voltage: 24V (two 12V in series). Recommended batteries: Two 12V AGM/flooded/LiFePO4 batteries in series, or one 24V single-case lithium (60–120Ah). Amperage and protection: 24V motors (70–80 lb) draw up to ~56A at full throttle. Protect with a 60A resettable breaker.
Our 24V pro 6 gauge system with a 6 ft. extension between batteries for boats that have split compartments, Lithium Compatible built for high output systems. With onboard charging connections. install this system once for the life of your rig.
• Extended 6-gauge series connection for separated batteries
• Low-resistance Pro Series wire
• Self-cleaning, positive-lock connectors
• Pairs with 24V Pro systems
• Lithium and AGM compatible
Compatible Trolling Motors:
- Minn Kota Ultrex
- Ulterra
- Terrova
- Riptide (24V / 70–80 lb)
- Garmin Force (24V)
- Lowrance Ghost (24V)
- MotorGuide Tour, X5 and Xi5 (24V)
- Rhodan 24V
Recommended Voltage/ Amperage/ Fuse/ Breaker:
24V (two 12V in series), 24V motors (70–80 lb) draw up to ~56A at full throttle. Protect with a 60A resettable breaker
Battery Types:
Two 12V AGM/ flooded/ LiFePO4 batteries in series or one 24V single-case lithium (60–120Ah)
FAQ: Does this include a breaker?
A: Use a 60A breaker on the positive motor lead; the 24V Pro RCE24VPRO kit includes one.
FAQ: Which boats need this?
A: Bass, walleye and multi-species boats that split trolling batteries between compartments.
24V separated battery wiring kit, 24V Pro extension; 6 gauge series connection; split compartment trolling motor wiring
