36V Trolling Motor Connection Kit with 5 ft Extension — For Separated Battery Compartments

When your three 12V batteries are split across compartments, the RCE36VB5CHK bridges the gap with a 5-foot series extension. Integrated charging leads keep your 3-bank on-board charger connected, and plug-and-play connectors make battery removal tool-free.

Connect-Ease's patented, self-cleaning, positive-lock connectors replace wing nuts and stacked ring terminals at the battery. Install once and every connection after that is plug-and-play — the system wires your batteries correctly every time, and integrated charging leads keep your on-board charger connected while you fish, trailer or store the boat.

Compatible trolling motors and vehicles: Minn Kota Ultrex, Ulterra, Terrova and Riptide (36V / 101–112 lb, incl. QUEST models); Garmin Force (36V); Lowrance Ghost (36V); MotorGuide Tour Pro and Xi5 (36V).

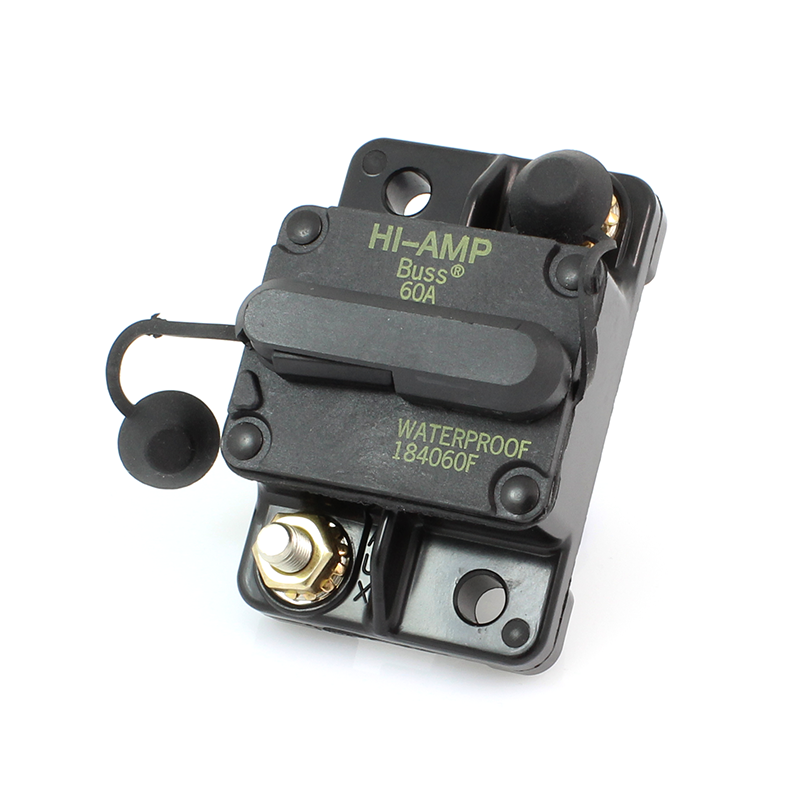

System voltage: 36V (three 12V in series). Recommended batteries: Three 12V AGM/flooded/LiFePO4 batteries in series, or one 36V single-case lithium (60–120Ah). Amperage and protection: 36V motors (101–112 lb) draw up to ~52A at full throttle. Protect with a 60A resettable breaker.

A plug-and-play 36V series connection kit with a 60-inch extension for boats with two batteries in one compartment and a third in a separate compartment — including bass boats, center consoles, and other multi-compartment layouts. Includes integrated on-board charging leads.

• 5 ft series extension for separated batteries
• Integrated on-board charging leads
• Plug-and-play, self-cleaning connectors
• Marine-grade wire with heat-shrink terminations
• Lithium compatible

• Wire: 8-gauge marine-grade wire with 60-inch separated battery extension
• Charging: Integrated on-board charging leads — pre-wired for multi-bank charger connection
• Connectors: Self-cleaning, positive-lock plug-and-play connections — no tools required after installation
• Compatibility: All 36V trolling motor brands and models; AGM and lithium battery compatible

Compatible Trolling Motors:

• Minn Kota Ultrex
• Ulterra
• Terrova
• Riptide (36V / 101–112 lb, incl. QUEST models)
• Garmin Force (36V)
• Lowrance Ghost (36V)
• MotorGuide Tour Pro and Xi5 (36V)

Recommended Voltage/ Amperage/ Fuse/ Breaker:

36V (three 12V in series), 36V motors (101–112 lb) draw up to ~52A at full throttle. Protect with a 60A resettable breaker

Battery Types:

Three 12V AGM/flooded/LiFePO4 batteries in series, or one 36V single-case lithium (60–120Ah)

FAQ: Who needs this kit?

A: Boats that place one or more trolling batteries in a different compartment for weight balance.

FAQ: Is it lithium compatible?

A: Yes, it works with lithium and AGM batteries.
